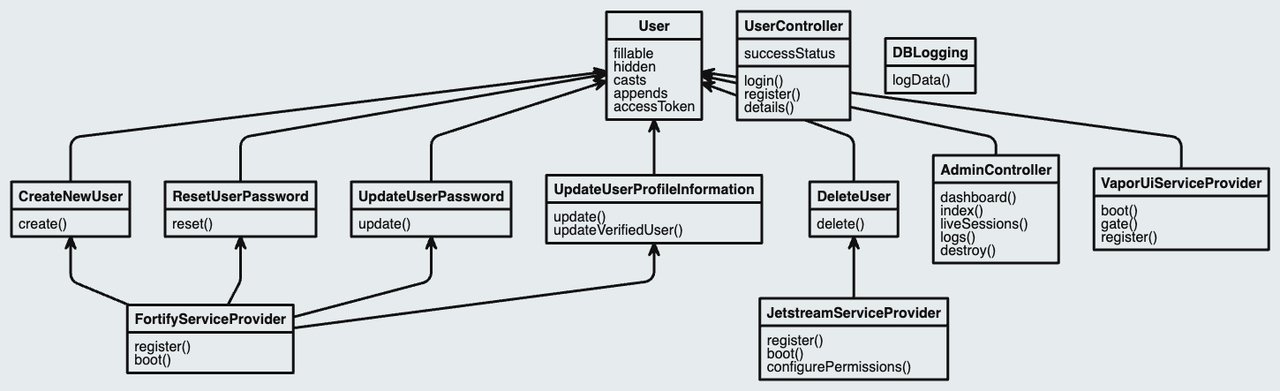

Backend Class Diagram

Classes and Descriptions

User

• Attributes: fillable, hidden, casts, appends, accessToken
• Operations: login(), register(), details(), successStatus
• Description: Represents a user entity in the system with functionalities related to user operations.

UserController

• Operations: login(), register(), details()
• Description: Manages user operations, routing requests to appropriate services or methods.

DBLogging

• Operations: logData()
• Description: Handles the logging of database operations, storing log entries related to database activities.

AdminController

• Operations: dashboard(), index(), liveSessions(), logs(), destroy()
• Description: Provides administrative control over the backend system, including a dashboard and log viewing capabilities.

CreateNewUser

• Operations: create()
• Description: Specialized in handling the creation of new user entities.

ResetUserPassword

• Operations: reset()
• Description: Dedicated to resetting user passwords.

UpdateUserProfileInformation

• Operations: update(), updateVerifiedUser()
• Description: Manages updating user profile information.

DeleteUser

• Operations: delete()
• Description: Handles the deletion of user entities.

FortifyServiceProvider

• Operations: register(), boot()
• Description: Registers and boots foundational services for user operations.

JetstreamServiceProvider

• Operations: register(), boot(), configurePermissions()
• Description: A service provider that sets up services and configurations, likely part of a specific framework.

VaporUiServiceProvider

• Operations: boot(), gate(), register()
• Description: Provides UI-related services and registers them for the system's use.

Relationships

The diagram shows several relationships between classes, indicating how they interact with each other. For instance:

• UserController ↔ User: Indicates UserController uses the User class to manage user data.
• Service providers (FortifyServiceProvider, JetstreamServiceProvider, VaporUiServiceProvider) ↔ User operation classes (CreateNewUser, ResetUserPassword, etc.)
